帶鋁制外殼的面板重量變送器/稱重儀表。作為工業稱重和配料系統中的微控制器的理想選擇，它可以更輕松、更安全地將稱重集成到任何自動化系統中。多達 2 個可編程數字輸入和 6 個輸出。

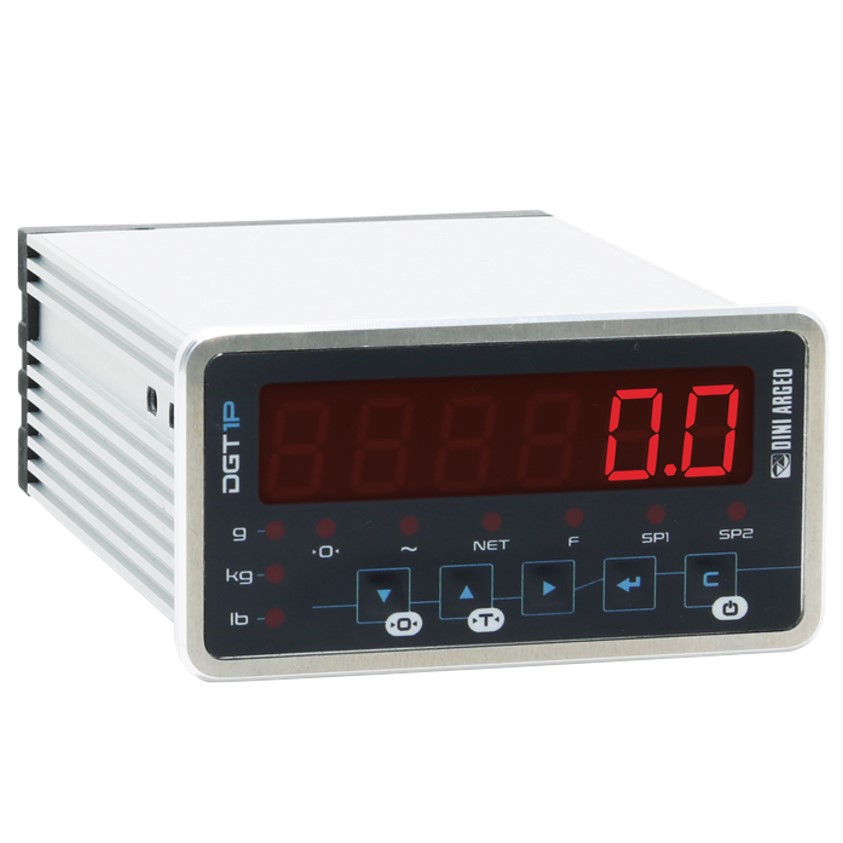

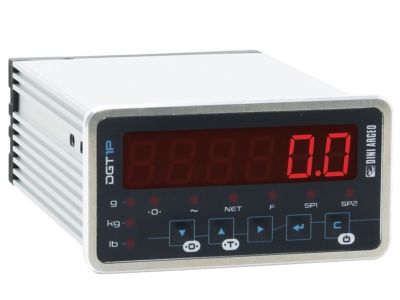

Panel weight transmitter/indicator with aluminum case. Ideal as microcontroller in industrial weighing and dosing systems, it makes it easier and safer to integrate the weighing into any automation system. Up to 2 programmable digital inputs and 6 outputs.

Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID)

TECHNICAL FEATURES

Power supply: 12-24 Vdc
Converter: A/D 24 bit with 1 channel
Max number of scales: 1
Load cells connection: 4 or 6 wires (with sense)
Conversion rate: 400 Hz
Selectable sampling rate: up to 400 conv./sec
Displaying: up to 800.000d
Signal sensitivity: 0,01 μV/d (0,03 μV/e)
Resolution: 3.000.000 points
Linearization: up to 8 points
Connectable load cells: up to 16x350 Ω cells
Serial ports: 1 RS485 port
Analog output: 16 bit optoisolated (DGT1PAN Model) choosing between 0-5Vdc, 0-10Vdc, 4-20mA or 0-20mA.
Digital outputs: n. 2 OUT (optional up to 6), configurable optoisolated photomosfet
Digital inputs: n. 2 IN, configurable optoisolated

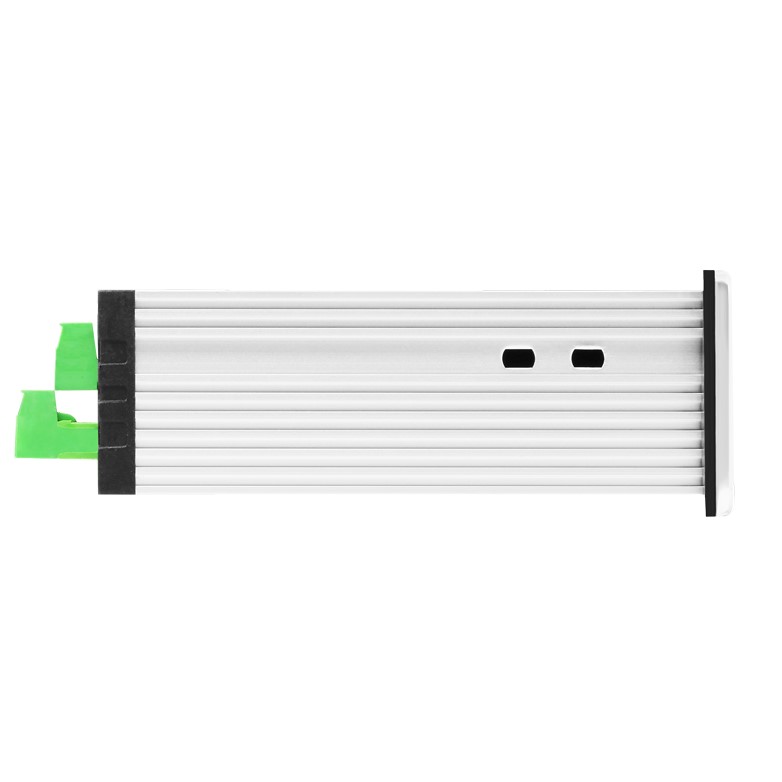

Case: aluminium. Dimensions:100 x 53 x 136 mm(lxhxw). Panel cutout: 92 x 44 mm(lxh).
Calibration:
- Theoretical (mVV)
- With sample weights
Keyboard functions: zeroing, tare, function mode, print, manual data sending, On/Stand-by
Program functions:
- Setpoint
- High resolution
- Peak
- Alibi Memory
- Unit of measure conversion
Keyboard: mechanical with 5 digits, waterproof
Display: 14,2mm red LED

Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID)

TECHNICAL FEATURES

Power supply: 12-24 Vdc
Converter: A/D 24 bit with 1 channel
Max number of scales: 1
Load cells connection: 4 or 6 wires (with sense)
Conversion rate: 400 Hz
Selectable sampling rate: up to 400 conv./sec
Displaying: up to 800.000d
Signal sensitivity: 0,01 μV/d (0,03 μV/e)
Resolution: 3.000.000 points
Linearization: up to 8 points
Connectable load cells: up to 16x350 Ω cells
Serial ports: 1 RS485 port
Analog output: 16 bit optoisolated (DGT1PAN Model) choosing between 0-5Vdc, 0-10Vdc, 4-20mA or 0-20mA.
Digital outputs: n. 2 OUT (optional up to 6), configurable optoisolated photomosfet
Digital inputs: n. 2 IN, configurable optoisolated
Case: aluminium. Dimensions:100 x 53 x 136 mm(lxhxw). Panel cutout: 92 x 44 mm(lxh).
Calibration:
- Theoretical (mVV)
- With sample weights
Keyboard functions: zeroing, tare, function mode, print, manual data sending, On/Stand-by
Program functions:
- Setpoint
- High resolution
- Peak
- Alibi Memory
- Unit of measure conversion
Keyboard: mechanical with 5 digits, waterproof
Display: 14,2mm red LED

DOWNLOAD

MAIN CERTIFICATIONS

CE-M EN 45501
OIML R76
OIML R61 - MID
OIML R51

Available versions

	Code	Description
	DGT1P	Panel weight transmitter with aluminum case. 2 IN and 2 OUT. 5-key keypad, LED display.
	DGT1PAN	Panel weight transmitter with aluminum case. 2 IN, 2 OUT and analogue output. 5-key keypad, LED display.
